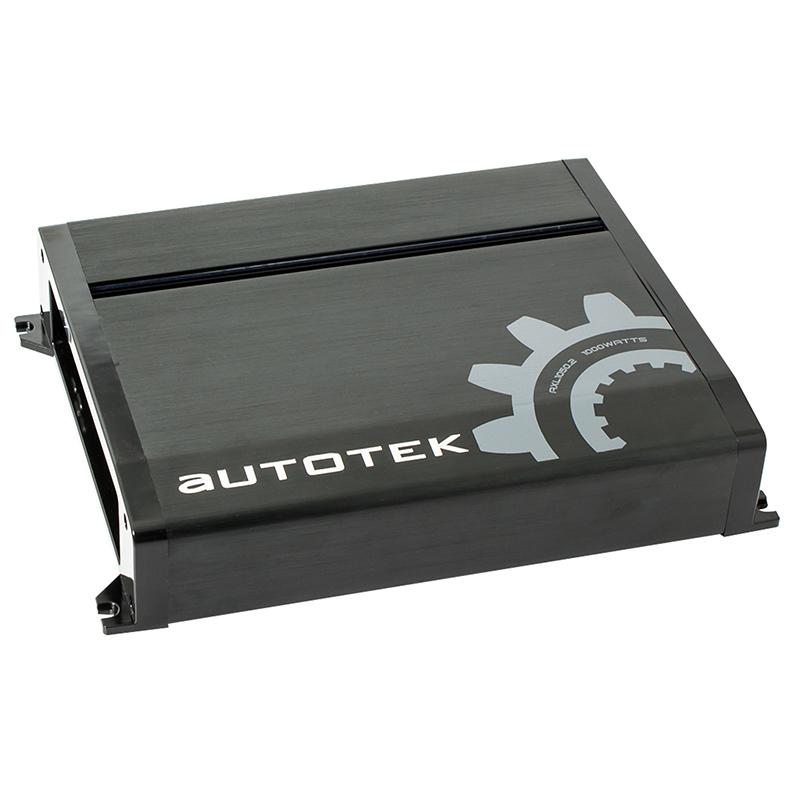

Autotek AXL1050.2

1000W Max 2-Channel AXL Series Class AB Car Amplifier
Autotek AXL1050.2

General Features:



  • AXL Series 2-Channel Class AB Car Amplifier

  • Max Power Rating:


    • 4 ohms: 250 watts x 2 chan.

    • 2 ohms: 500 watts x 2 chan.

    • Bridged, 4 ohms: 1000 watts x 1 chan.


  • Pulse Width Modulated MOSFET power supply

  • LED power (green) and protect (red) indicators

  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)

  • Soft start turn-on

  • 2 or Mono channel operation

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on

  • Preamp RCA outputs to daisy chain multiple amps

  • 4-way protection circuitry (thermal, overload, and speaker short protection, DC)

  • Heavy duty aluminum alloy heat-sink

  • Input sensitivity:


    • Level: 200mV-5V


  • Variable high-pass filter (60-12,000 Hz)

  • Variable low-pass filter (30-250 Hz)

  • Damping factor: >180

  • Frequency response: 10-45,000 Hz

  • Dimensions: 9-1/16"W x 12"D x 2-5/16"H

  • Price: $99
